American 1100 Cutaway Lock

This cutaway is now available at CLKSupplies.com and Lockpicks.com! Check it out here: https://www.clksupplies.com/products/american-1100-cutaway-training-padlock-cnc-milled

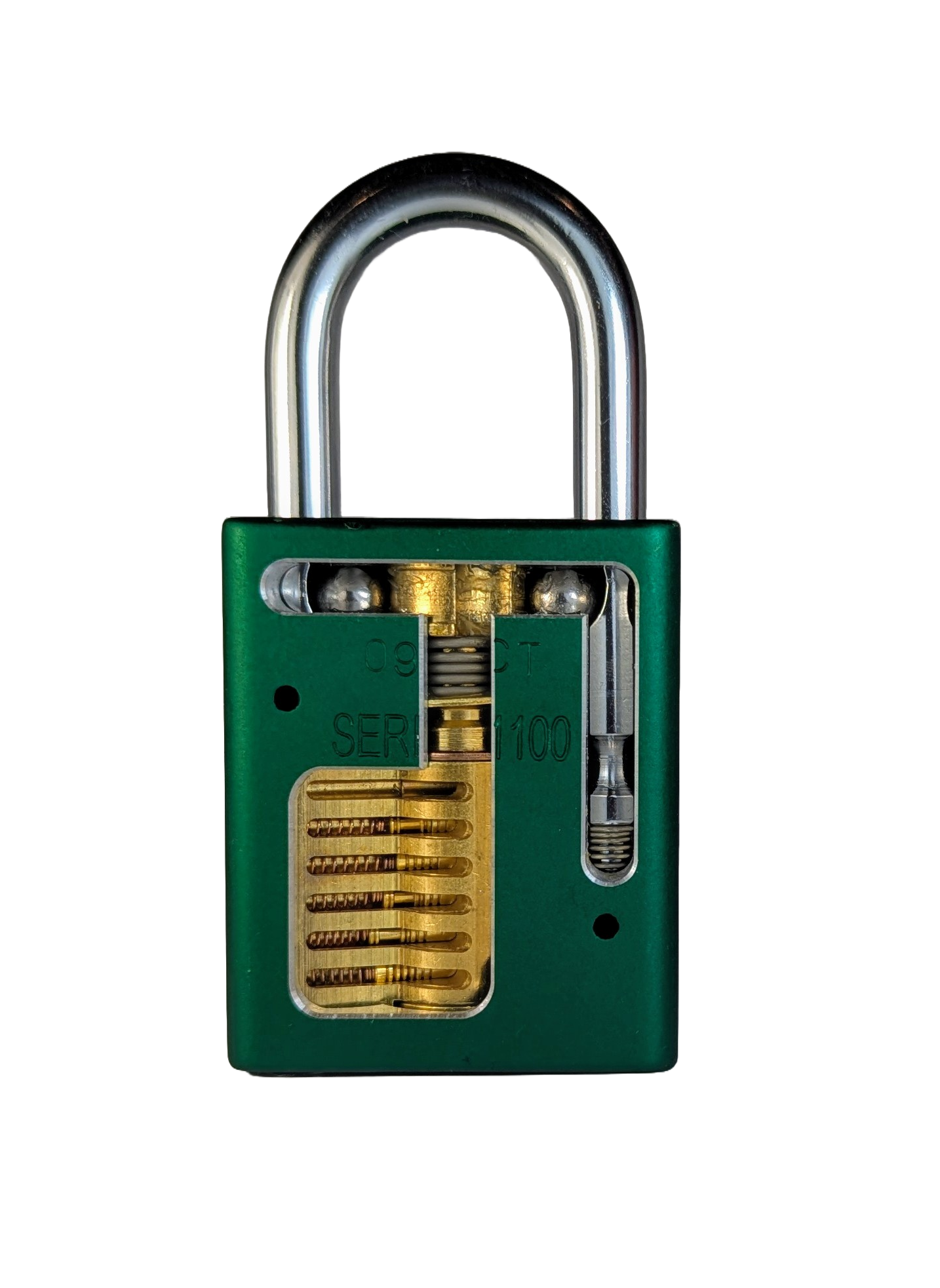

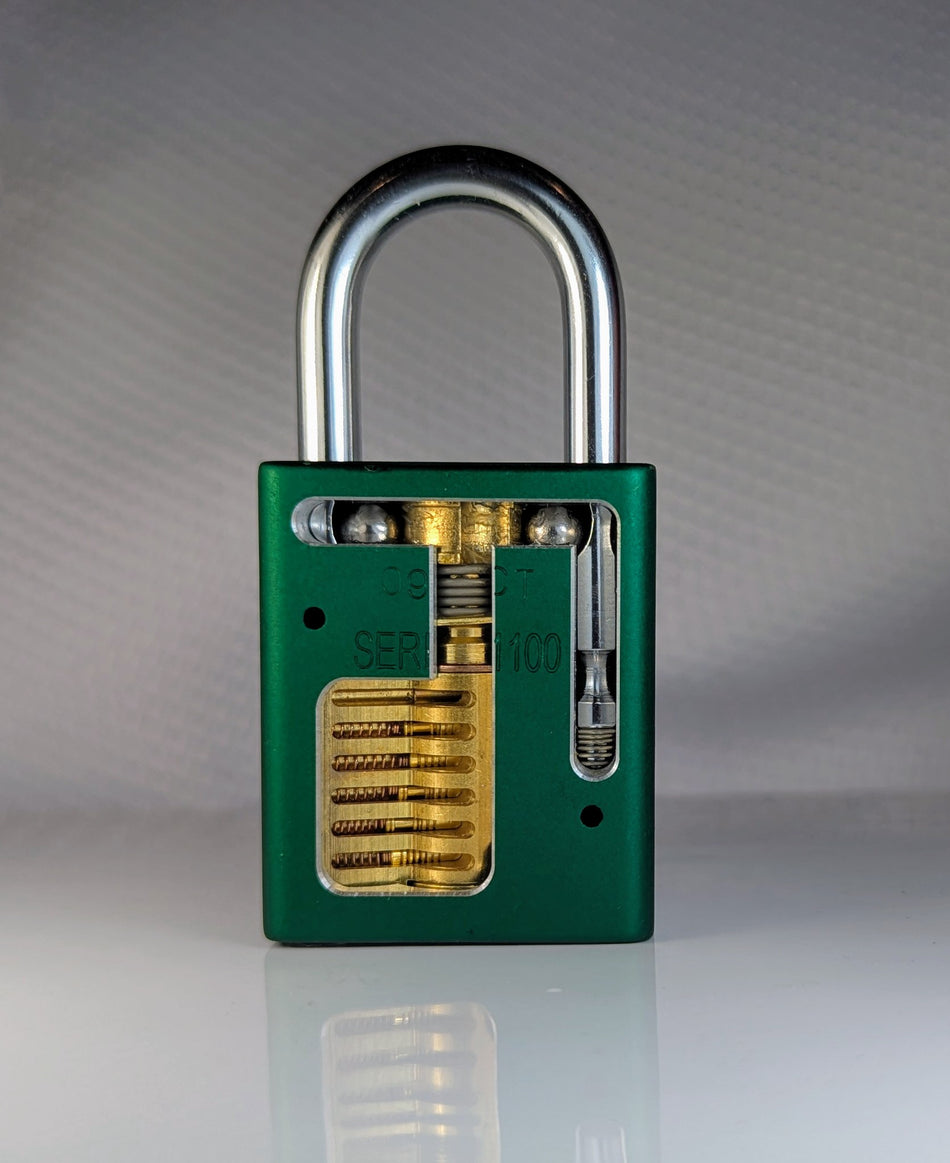

This is an American Lock 1100 Series padlock which I have cut away on one side with a CNC machine so you can see the internals.

The lock is fully functional and comes with 2 working keys. This lock's cylinder comes with 5 pin stacks (with 2 serrated driver pins and 3 spool pins), with the 6th chamber left empty by the manufacturer.

The cutaway is on the right side of the lock, as viewed from the bottom of the lock with the pins at the top. The 1100 cannot be cut on the left side because there is a hidden screw assembly which would obscure the cylinder from view if cut out on the other side.
